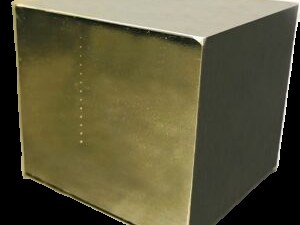

Arcoplate ARCO wear plate
Fused chromium carbide overlay plate with a smooth, weld-free surface
Overview
What Arcoplate is
Arcoplate is manufactured by a horizontal spin-cladding process that metallurgically fuses a chromium carbide alloy to a mild steel backing. The result is a flat, dimensionally consistent plate with no weld beads or stress checks on the running face, so material slides rather than snags.
Key features
- Long-lasting wear life: as little as 1 mm wear in 7 years in service
- Smooth as-clad surface reduces friction and build-up
- No cross-checking on the wear face at delivery
- Consistent overlay depth across the full sheet
- Formable, drillable and weldable through the backing
- Available as flat sheet, rolled sections, cones and pipe spools
Typical applications
- Transfer chutes
- Bin and hopper liners
- Cyclone cones
- Truck body floors
- Conveyor skirts
Specification & grades
- Overlay hardness
- 58-65 HRC
- Overlay thickness
- 3 mm to 20 mm
- Backing plate
- 5 mm to 20 mm mild steel
- Standard sheet
- Up to 3000 x 1500 mm
- Service temperature
- Up to 450 degrees C continuous
- Bond
- Metallurgical, full fusion
- Grades in service
- Arcoplate 1600, Arcoplate 8668
Need a fabricated liner set?
Our ISO 9001:2015 workshop supplies Arcoplate cut, rolled and drilled to your drawings, ready to install in the shutdown window.
Send us your drawingsThe wear plate customers come back for
Why our customers keep coming back to Arcoplate
Arcoplate is recognised as the world's most wear-resistant fused alloy steel plate, and our customers see it in service: it holds its profile long after conventional wear plates have worn through. Once a plant has run one Arcoplate liner, the next order follows.
1 mm wear in 7 years
Arcoplate 1600 slide rails, JSW Steel Vijayanagar Pellet Plant-3
29,000+ running hours
Arcoplate 8668 in clinker handling, JSW Cement FZC
Repeat orders
The Ramco Cements: raw mill feed chute, then the feed gate
Still in service
Arcoplate 1600 raw mill feed chute liner, Chettinad Cement
A liner that lasts longer means fewer shutdowns, less relining labour and a lower cost per tonne handled, which is why steel, cement and mining plants specify Arcoplate again at every changeout.
